Configuring Your TP-Link VX230v / AX1800 - Quick Setup

**Please note that your router will come pre-configured with the settings to allow you to simply plug the router in and the service will work.**
If you have questions, please contact us and we will be more than happy to assist.
If you have reset your router, below are the steps required to reconfigure your router.
First, follow steps 1 (Connect) & 2 (Accessing the device) of "Connecting to your TP-Link VX230v / AX1800"

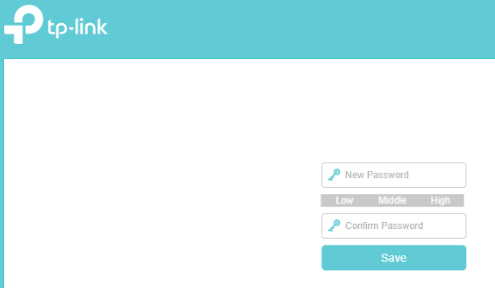

1. The first page you will reach is a page to set the password to your router. **Please ensure you remember this as you may need it at a later stage.


2. Once you have set the password, you will need to enter it on the login page

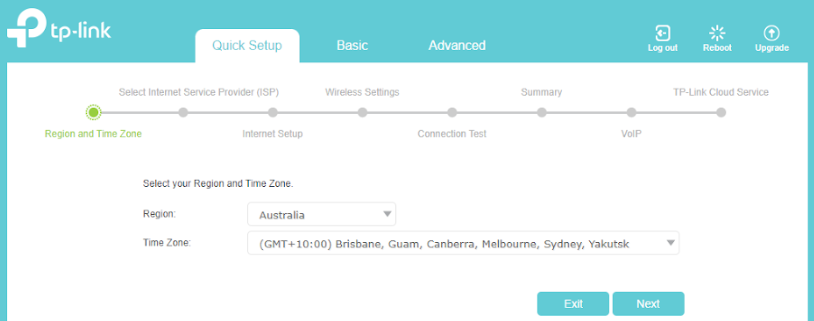

3. Once logged into the router you will see a Quick Setup wizard, first select your Region and Time Zone. Once you have done this please click the Next button.
For example, Australia - (GMT + 10:00) Brisbane, Guam, Canberra, Melbourne, Sydney, Yakutsk (As seen below).


4. Next it will ask you to select your Internet Service Provider (ISP), please select the option for Other. Once you have done this please click the Next button.


5. Under Internet Setup, the settings required for this are different for each connection.
Configuring Your TP-Link VX230v / AX1800 - Quick Setup - WAN
Configuring Your TP-Link VX230v / AX1800 - Quick Setup - VDSL
If you aren't sure which technology type your service uses, please contact us for further support.
6. Once you have completed the Internet Setup, you will need to set up your wifi under Wireless Settings. Once you are done please click the Next button.
**You can leave this section as the default settings if you like.

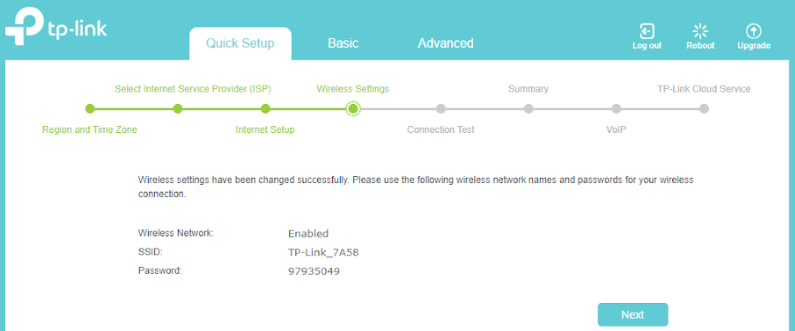

8. You will see a confirmation that the Wifi details have been completed, please click the Next button.

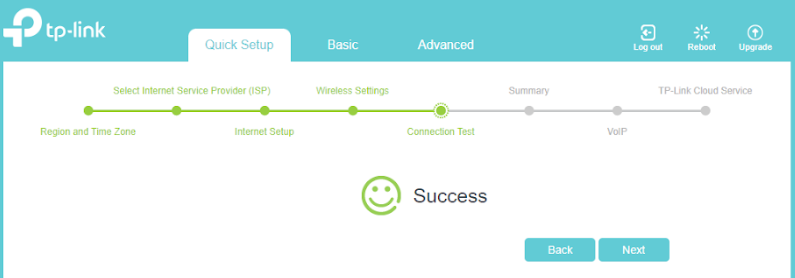

7. The next step is the Connection Test, this will confirm if the details you have entered as well as how the device is plugged in are correct and you are able to connect to the internet. If all goes to plan, you will get the following. Then please click the Next button.


If you have issues, please contact us and we will be more than happy to assist.

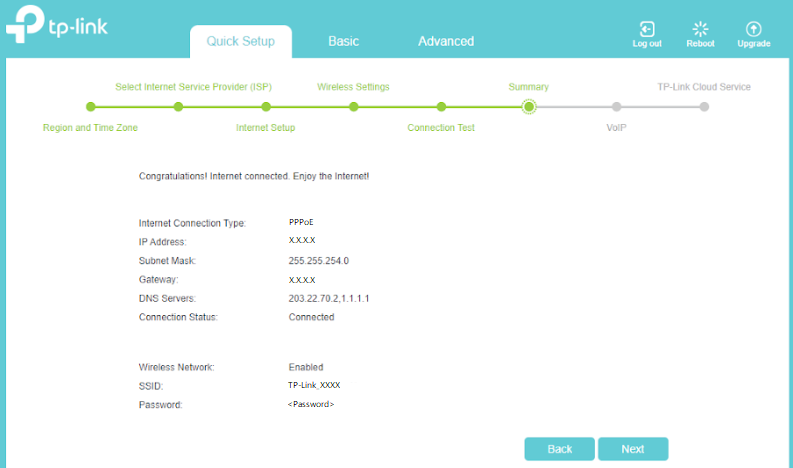

8. The final page you will see is the summary of the setup you have just completed.


9. The next 2 sections are not required and can be skipped.
