Plugging in your new TP-Link Archer VR1600V

Please do not reset the device as MyOwn Tel pre-configures the TP-Link Archer VR1600V to suit your specific service, so all you'll need to do is plug it in according to the instructions below.

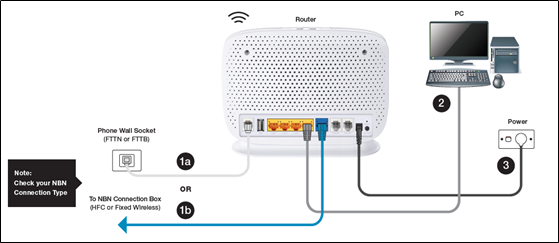

1. Plug this cable into the following socket accordingly:

   • 1a Plug this cable into your telephone socket (FTTN/FTTB)

   • 1b Plug this cable into your hand-off device (the nbn / OptiComm / LBNCo 'modem' on your wall) (FTTP/HFC/FTTC/Fixed Wireless)

2. Use an ethernet/network cable to connect your PC, game console or TV

   • Alternatively, you can connect these devices via the built in WiFi (should your device or TV support WiFi)

3. Plug your power cable in to a wall socket
